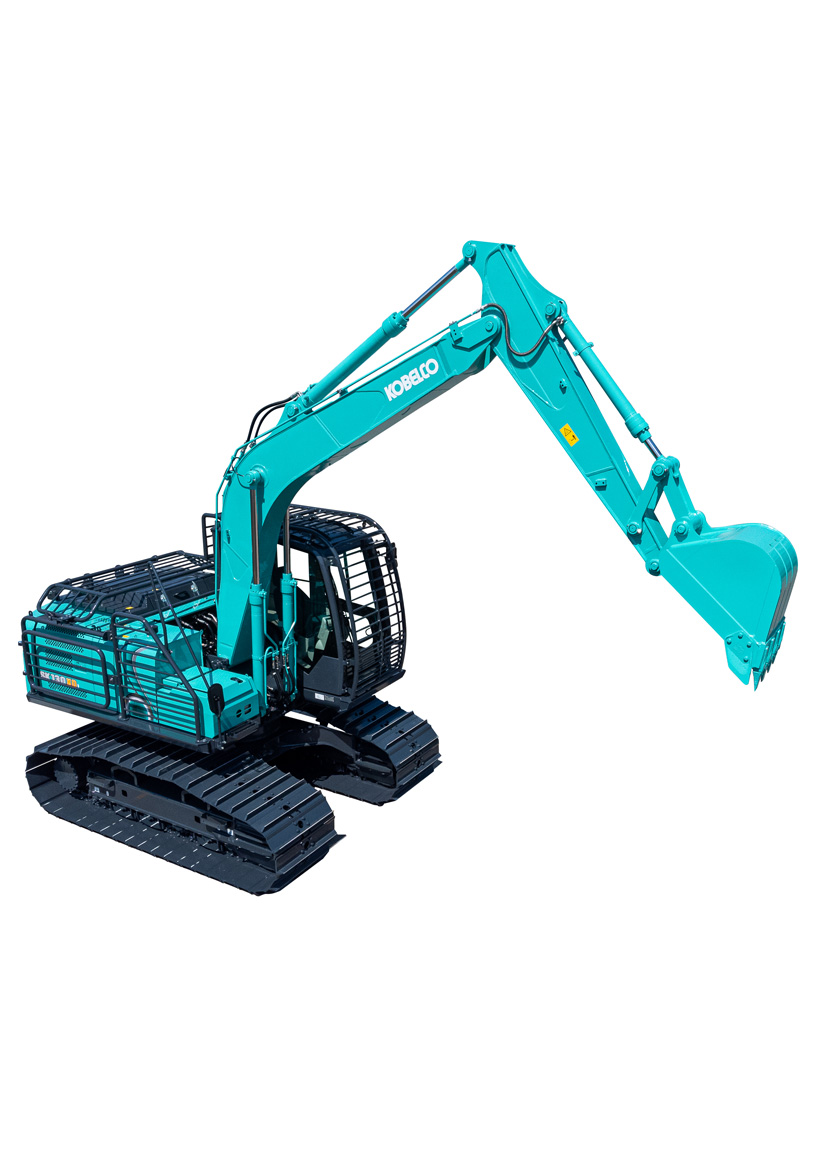

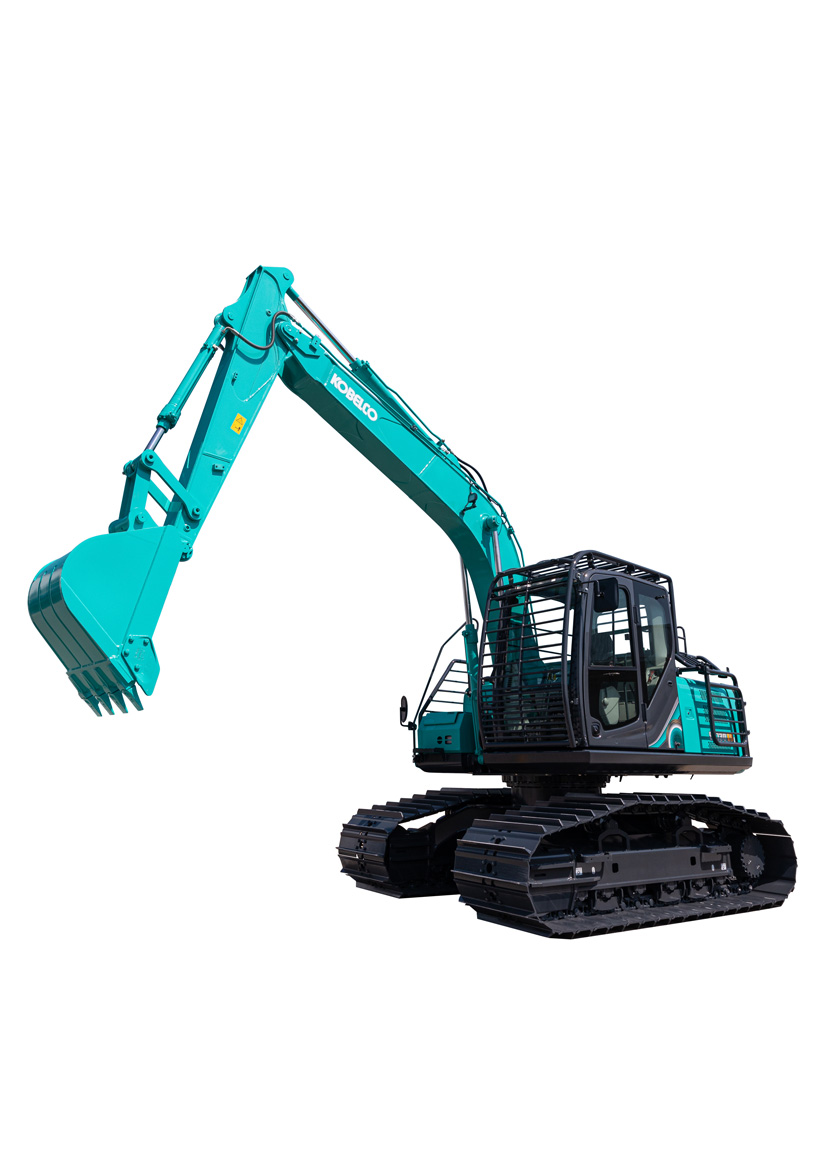

SK130XDL-10E

SK130XDL-10E_02

SK130XDL-10E_02

SK130XDL-10E

Engine	Model	Bucket Capacity
73.0 kW / 2,000 min^-1 (ISO 14396 Without Fan)	ISUZU 4JJ1	0.45 m³

Engine	73.0 kW / 2,000 min^-1 (ISO 14396 Without Fan)
Model	ISUZU 4JJ1
Bucket Capacity	0.45 m³

This series can be used for industry:: Forestry; Agribusiness

Download Brochure: SK130XDL-10E.PDF

Main Specifications

Model Name		SK130XDL
Machine Type		SK130XDL-10E

Engine

Model		ISUZU 4JJ1
Type		Four cycle, water cooled, overhead camshaft, vertical in-line, direct injection type, with turbocharger
Rated power output	kW/min^-1	65.4 / 2,000 (ISO 9249 With Fan) 73.0 / 2,000 (ISO 14396 Without Fan)

Hydraulic System

Hydraulic Oil Tank	L	94.5 (197)
Pump Type		Two variable displacement pumps + one gear pump
Pump Max.Discharge flow	L/min	2 x 130.4, 1 x 20

Swing System

Swing speed	min^-1{rpm}	10.9

Travel System

Travel Speed (high/low)	km/h	4.8 / 2.4
Drawbar Pulling Force	kN	196 {20,000} (SAE J 1309)
Gradeability	% ( º )	70 (35)
Travel motors		2 x Variable displacement piston motor

Refilling Capacities & Lubrications

Fuel Tank	L	271

Attachments

Bucket capacity ISO heaped	m³	0.45

Operating Weight

Operating Weight	kg	14,700 - 15,400
