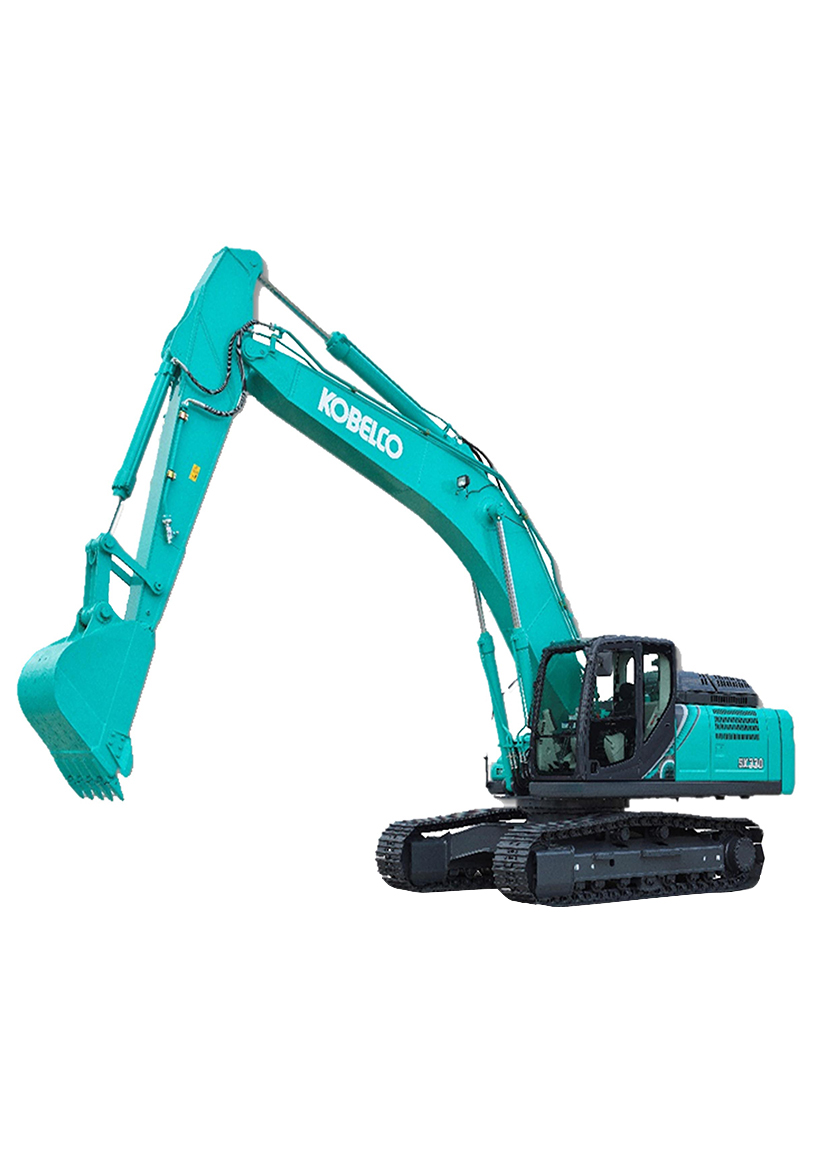

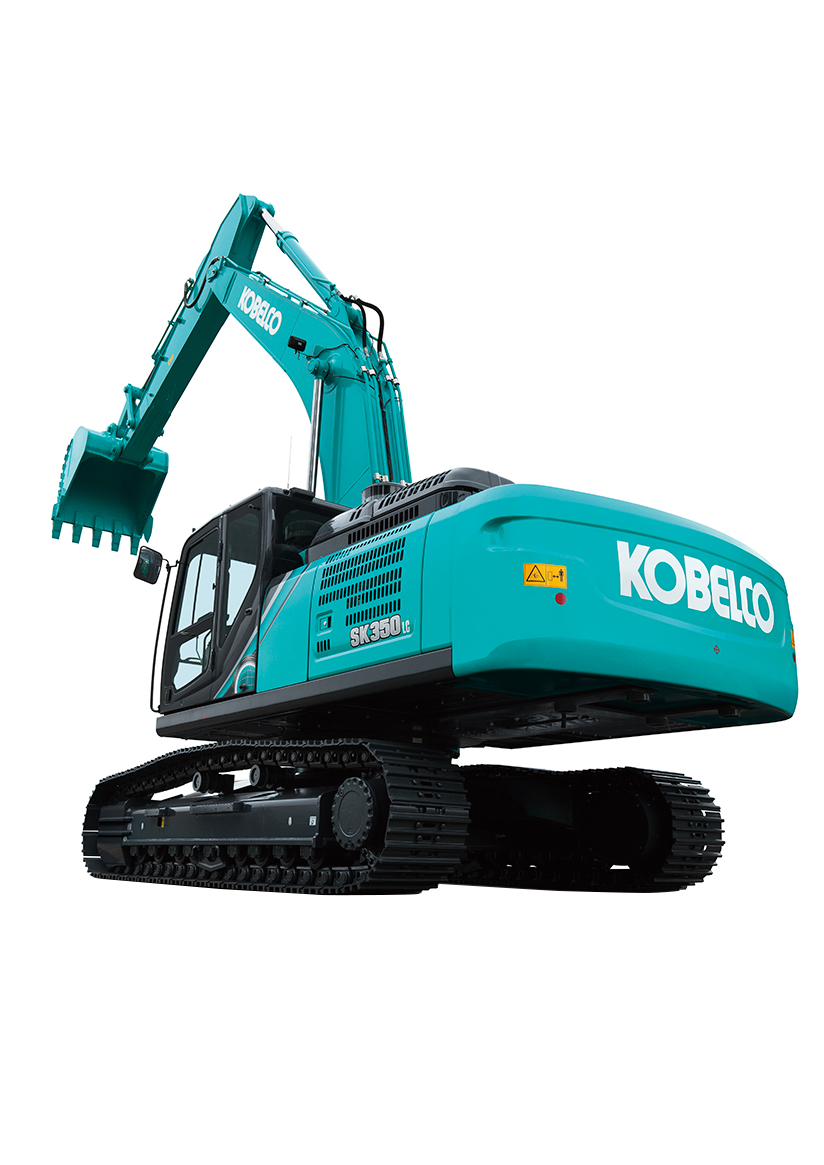

SK330 / SK350LC

SK330-10 / SK350DLC-10

Engine	Model	Bucket Capacity
200 kW / 2,100 min^-1 (ISO 14396)	HINO J08EUN	1.4m³

Engine	200 kW / 2,100 min^-1 (ISO 14396)
Model	HINO J08EUN
Bucket Capacity	1.4m³

This series can be used for industry:: Construction & Civil Works; Mining & Quarries

Download Brochure: SK330-10/SK350DLC-10.PDF

Main Specifications

Model Name	SK330	SK350LC
Machine Type	SK330-10	SK350LC-10

Engine

Model		HINO J08EUN
Type		Four-stroke liquid-cooled direct injection diesel turbo charged with intercooler
Rated power output	kW/min^-1	188 / 2,100 (ISO 9249) 200 / 2,100 (ISO 14396)

Hydraulic System

Hydraulic capacity	L	System 410 / Tank level 245
Pump Type		Two variable displacement piston pumps + one gear pump
Pump Max.Discharge flow	L/min	2 x 294 , 1 x 21

Swing System

Swing speed	min^-1{rpm}	10

Travel System

Travel Speed (high/low)	km/h	5.6 / 3.3
Drawbar pulling force	kN	333 (ISO 7464)
Gradeability	% ( º )	70 {35}
Track shoes		Triple grouser shoes
Track shoe	mm	600 / 700 / 800
Travel motors		Variable displacement piston pump

Refilling Capacities & Lubrications

Fuel Tank	L	503

Attachments

Bucket capacity ISO heaped	m³	1.4 1.6
Bucket capacity struck	m³	1.0 1.2
Bucket Opening Width with side cutters	mm	1,420 1,600
Bucket Opening Width without side cutters	mm	1,300 1,470

Operating Weight

Operating Weight SK330-10	kg	34,700 - 35,900
