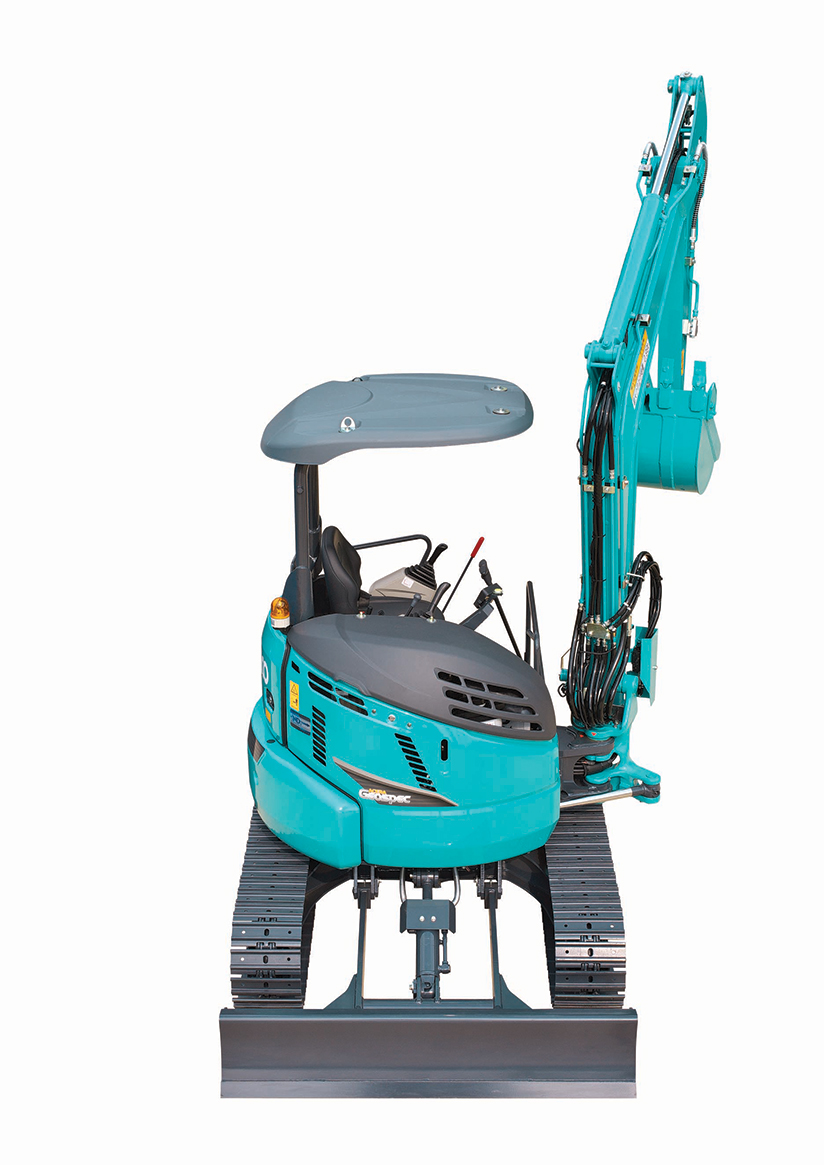

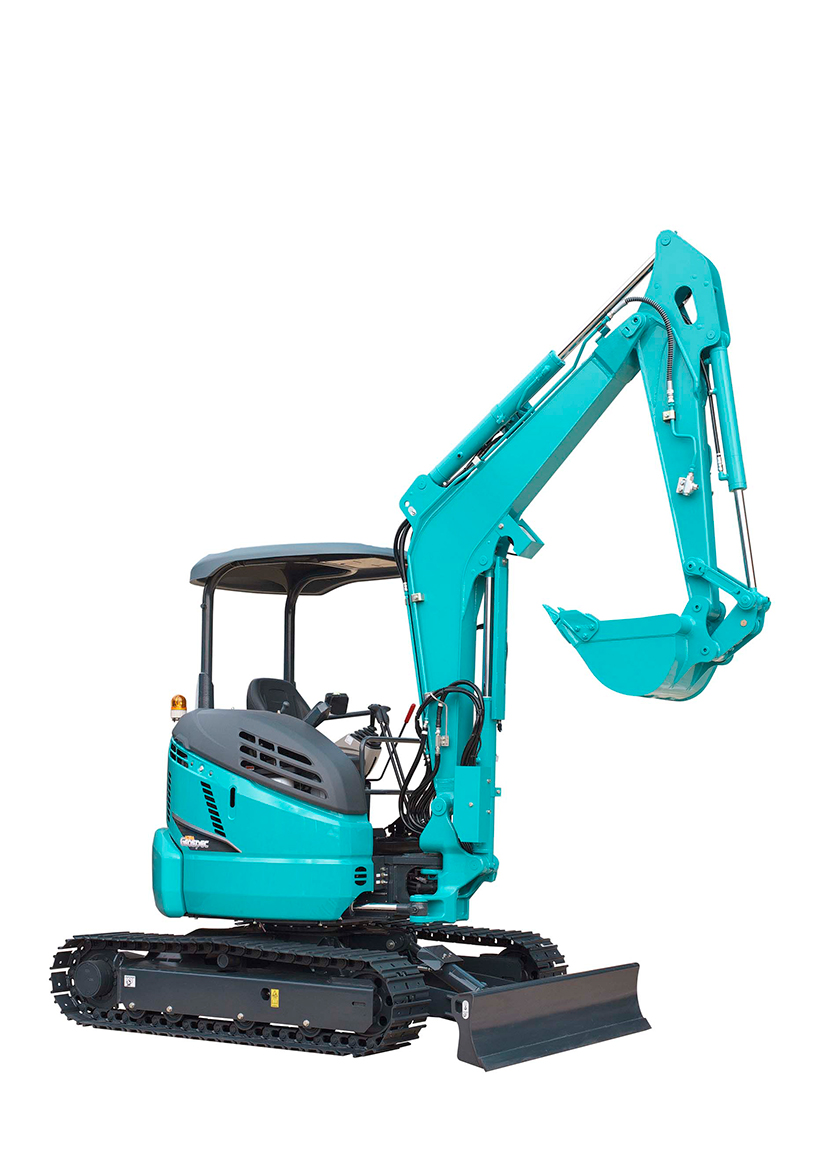

SK35SR

SK35SR-6

Engine	Model	Bucket Capacity
18.1 kW/ 2,400 min^-1 (ISO 14396)	YANMAR 3TNV82A-B	0.11 m³

Engine	18.1 kW/ 2,400 min^-1 (ISO 14396)
Model	YANMAR 3TNV82A-B
Bucket Capacity	0.11 m³

This series can be used for industry:: Construction & Civil Works; Agribusiness

Download Brochure: SK35SR-6.PDF

Machine Type		SK35SR-6

Engine

Model		YANMAR 3TNV82A-B
Type		Water cooled, 4-cycle, 3-cylinder, direct injection, diesel engine
Rated power output	kW/min^-1	18.1 / 2,400 (ISO 14396)

Hydraulic System

Hydraulic Oil Tank (system)	L	20.4 (44.8)
Pump		Two variable displacement pumps + one gear pump
Max.Discharge Flow	L/min	2 x 38.4, 1 x 19.2
Relief Valve Setting	MPa	23.0

Swing System

Swing speed	min^-1{rpm}	8.4
Swing motors		Axial piston motor

Travel System

Travel Speed (high / low)	km/h	4.4 / 2.5
Track shoe	mm	300
Track shoes		Rubber
Travel motors		2 x axial-piston, two-step motors

Refilling Capacities & Lubrications

Fuel Tank	L	42.0

Dozer Blade

Width x Height	mm	1,700 x 345
Working ranges (height / depth)	mm	395 / 320

Side digging mechanism

Type		Boom swing
Offset Angle		70º to the left, 60º to the right

Attachments

Bucket capacity	m³	0.11
Bucket Width	mm	600

Machine Mass & Ground Pressure

Machine Mass (canopy / cab)	kg	3,610 / 3,770
Ground Pressure (canopy / cab)	kPa	32.0 / 33.5
