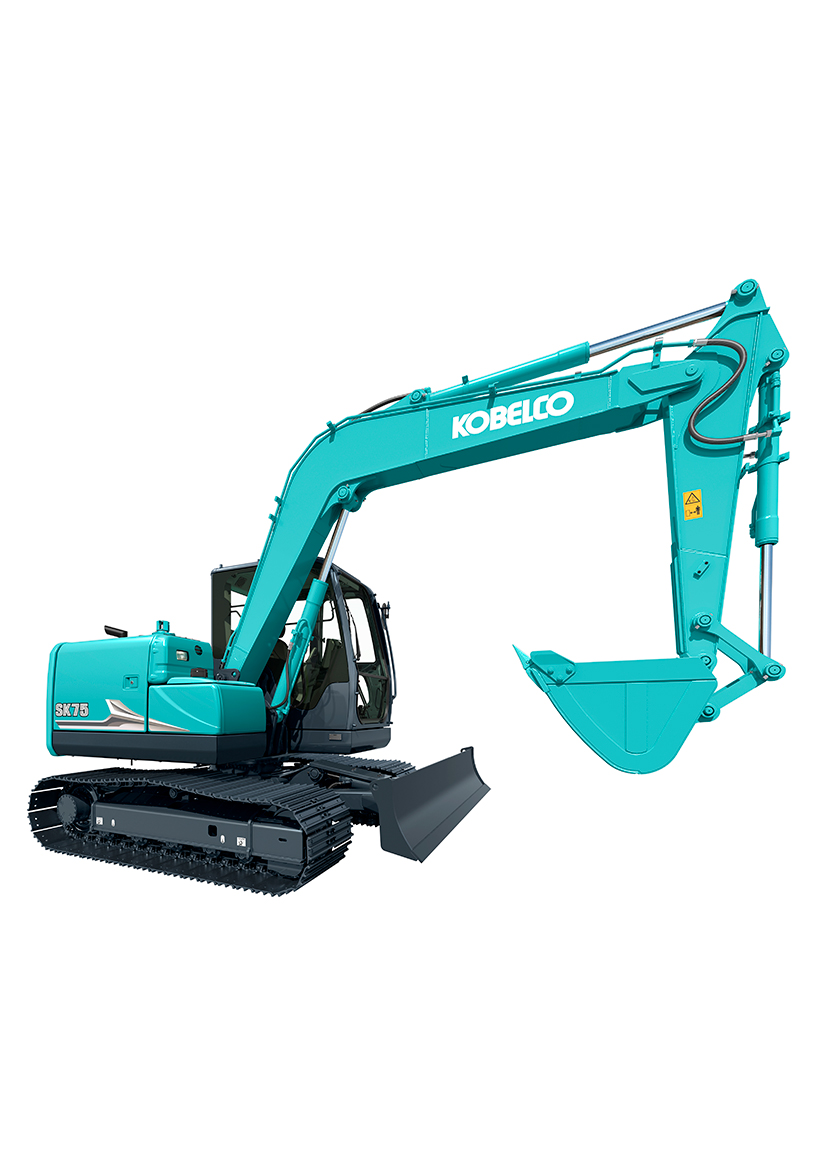

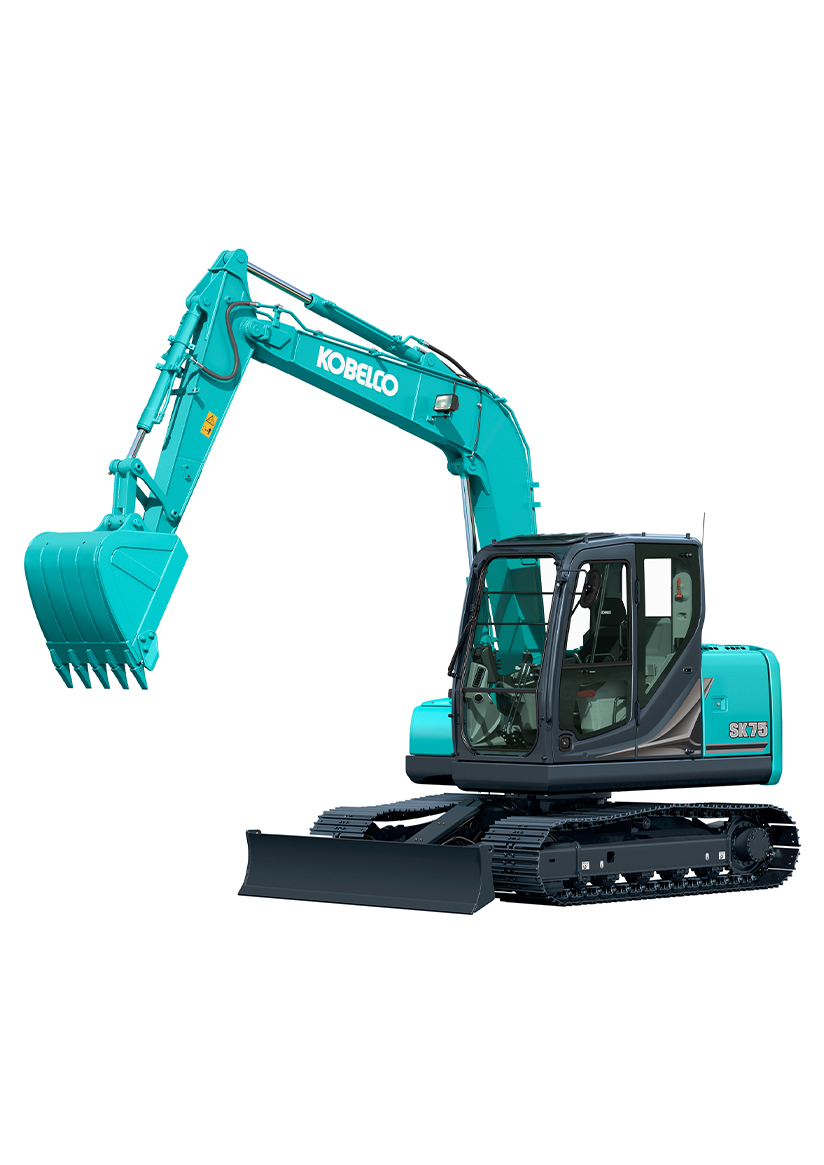

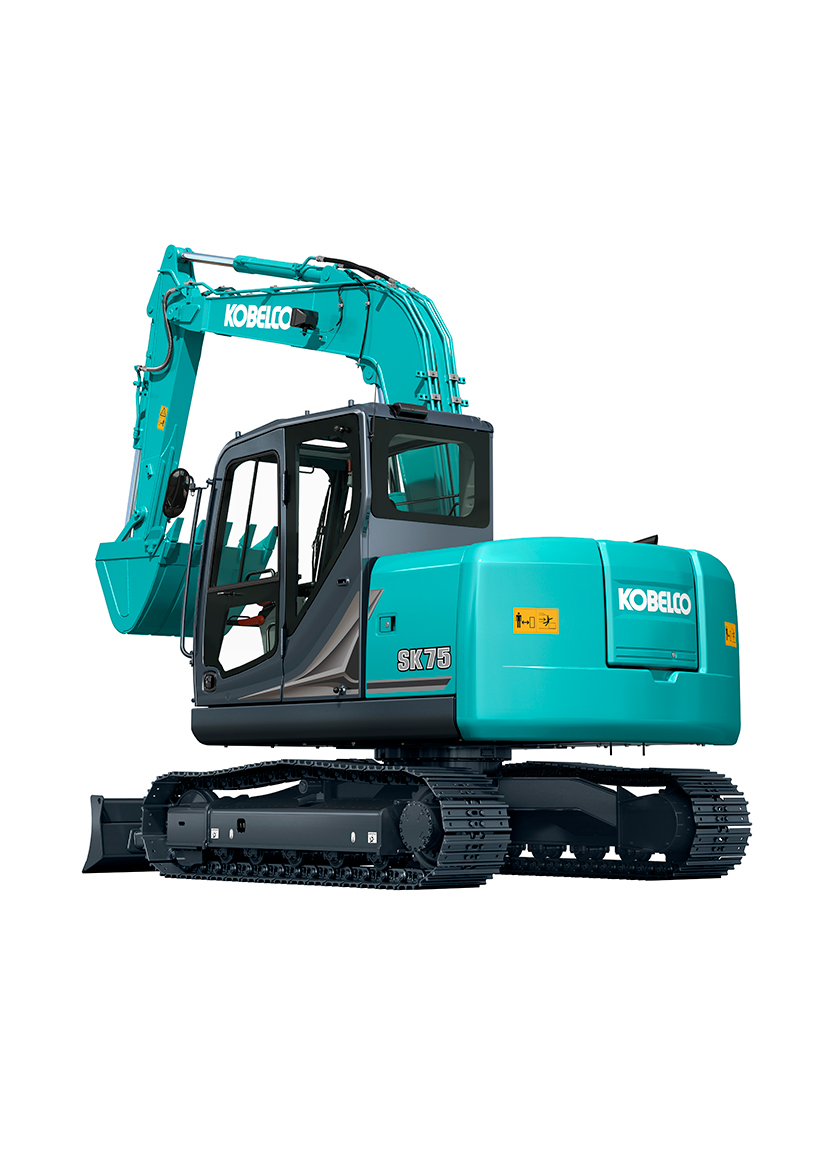

SK75

SK75-11

Engine	Model	Bucket Capacity
41.8 kW / 2,100 min^-1 (ISO 9249)	YANMAR 4TNV98-AVYBNC	0.40 m³

Engine	41.8 kW / 2,100 min^-1 (ISO 9249)
Model	YANMAR 4TNV98-AVYBNC
Bucket Capacity	0.40 m³

This series can be used for industry:: Construction & Civil Works; Agribusiness

Download Brochure: SK75-11.PDF

Model Name		SK75
Machine Type		SK75-11

Engine

Model		YANMAR 4TNV98-AVYBNC
Type		Four-stroke, 4 cylinder, Water-cooled, Direct Injection Diesel Engine
Power output	kW/min^-1	41.8 / 2,100 (ISO 9249) 44.4 / 2,100 (ISO 14396)

Hydraulic System

Hydraulic Oil Tank	L	System 107 / Tank level 67
Pump Type		Variable displacement axial piston pumps + one gear pump
Pump Max.Discharge Flow	L/min	1 x 126 , 1 x 17

Swing System

Swing speed	min^-1{rpm}	11.3

Travel System

Travel Speed (high/low)	km/h	2.6 / 5.0
Drawbar pulling force	kN	71.0 (ISO 7464)
Gradeability	% ( º )	58 {30}
Track shoes		Triple grouser shoes
Track shoe	mm	450 / 600
Travel motors		Variable displacement axial piston, two-speed motors

Refilling Capacities & Lubrications

Fuel Tank	L	140

Attachments

Bucket capacity ISO heaped	m³	0.40
Bucket capacity struck	m³	0.29
Bucket Opening Width with side cutters	mm	970
Bucket Opening Width without side cutters	mm	900

Operating Weight

Operating Weight	kg	7,220 – 8,060
