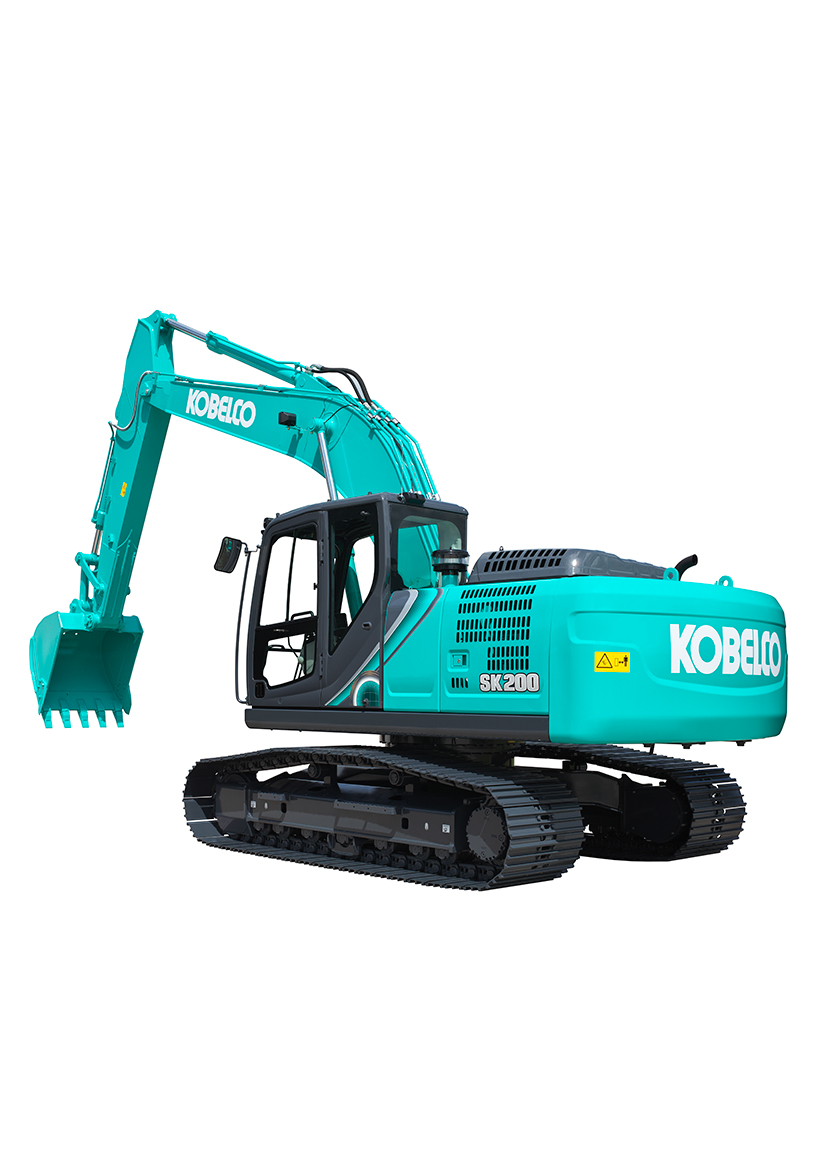

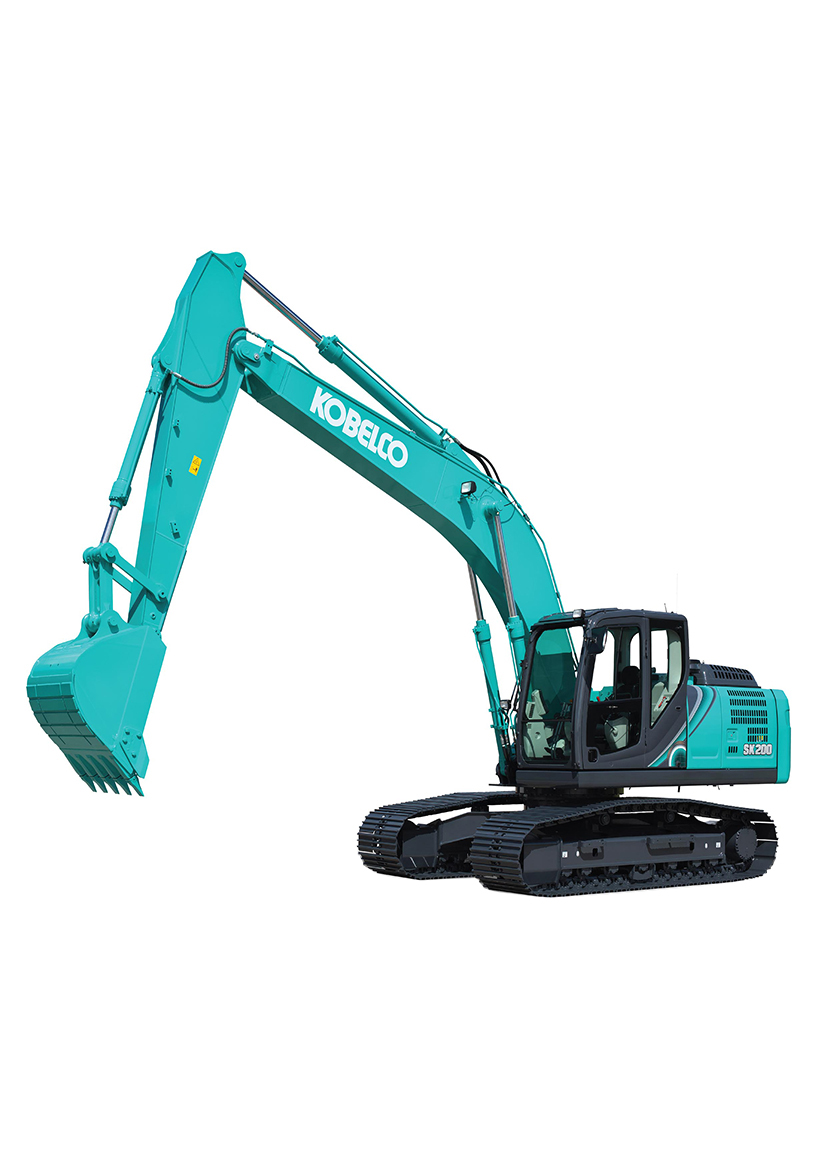

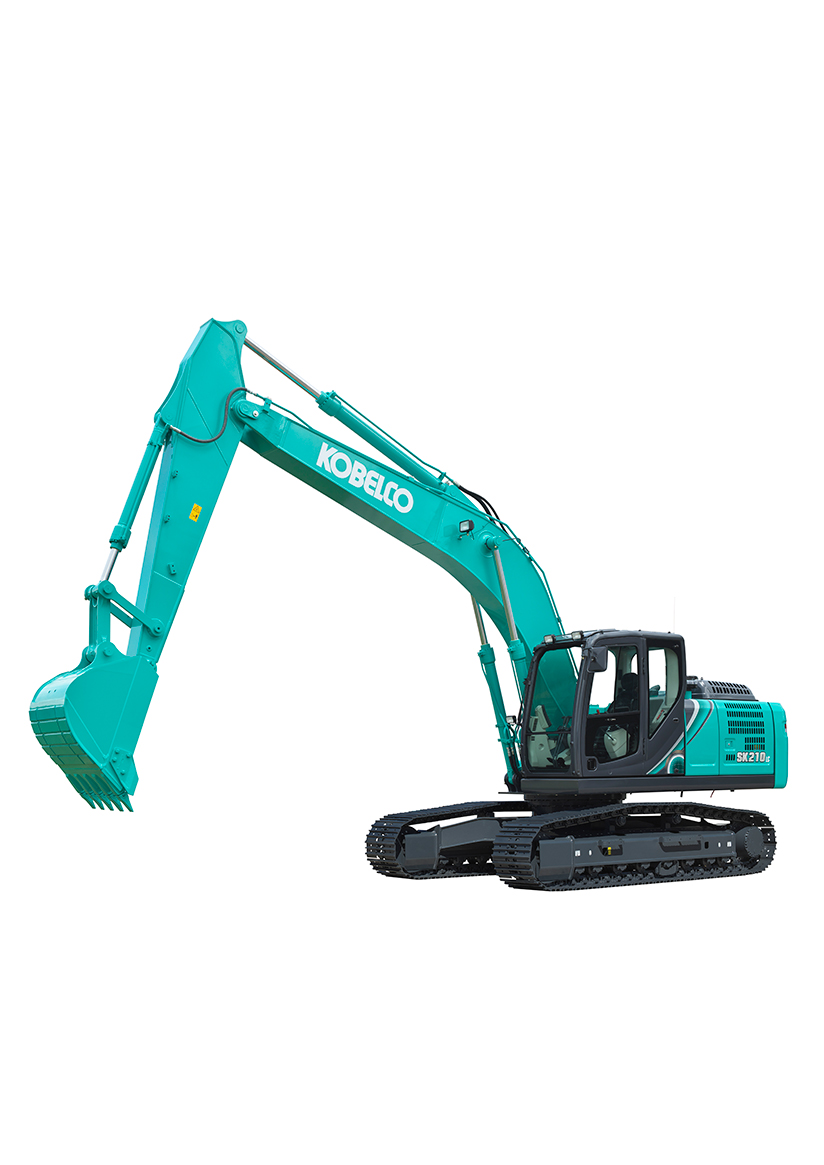

SK200 / SK210LC

SK200-10 / SK210LC-10

Engine	Model	Bucket Capacity
114 kW / 2,000 min^-1 (ISO 9249)	HINO J05ETG-KSSG	0.93 m³

Engine	114 kW / 2,000 min^-1 (ISO 9249)
Model	HINO J05ETG-KSSG
Bucket Capacity	0.93 m³

This series can be used for industry:: Construction & Civil Works; Mining & Quarries; Forestry; Agribusiness

Download Brochure: SK200-10/SK210LC-10.PDF

Main Specifications

Model Name	SK200	SK210LC
Machine Type	SK200-10	SK210LC-10

Engine

Model		HINO J05ETG-KSSG
Type		Direct injection, water-cooled, 4-cycle diesel engine with turbocharger, intercooler
Rated power output	kW/min^-1	114 / 2,000 (ISO 9249) 118 / 2,000 (ISO 14396)

Hydraulic System

Hydraulic Oil Tank	L	System 244 / Tank level 140
Pump Type		Two variable displacement pumps + one gear pump
Pump Max.Discharge flow	L/min	2 x 220 , 1 x 20

Swing System

Swing speed	min^-1{rpm}	13.3

Travel System

Travel Speed (high/low)	km/h	6.0 / 3.6
Drawbar pulling force	kN	228 (ISO 7464)
Gradeability	% ( º )	70 {35}
Track shoes		Triple grouser shoes
Track shoe	mm	600 / 700 / 800
Travel motors		2 x axial-piston, two-step motors

Refilling Capacities & Lubrications

Fuel Tank	L	320

Attachments

Bucket capacity ISO heaped	m³	0.80 0.80 0.93 0.93
Bucket capacity struck	m³	0.59 0.59 0.67 .67
Bucket Opening Width with side cutters	mm	1,160 1,160 1,330 1,300
Bucket Opening Width without side cutters	mm	1,140 1,060 1,230 1,200

Operating Weight

Operating Weight SK200	kg	21,100 21,300 21,600
Operating Weight SK210LC	kg	21,500 21,800 22,100
